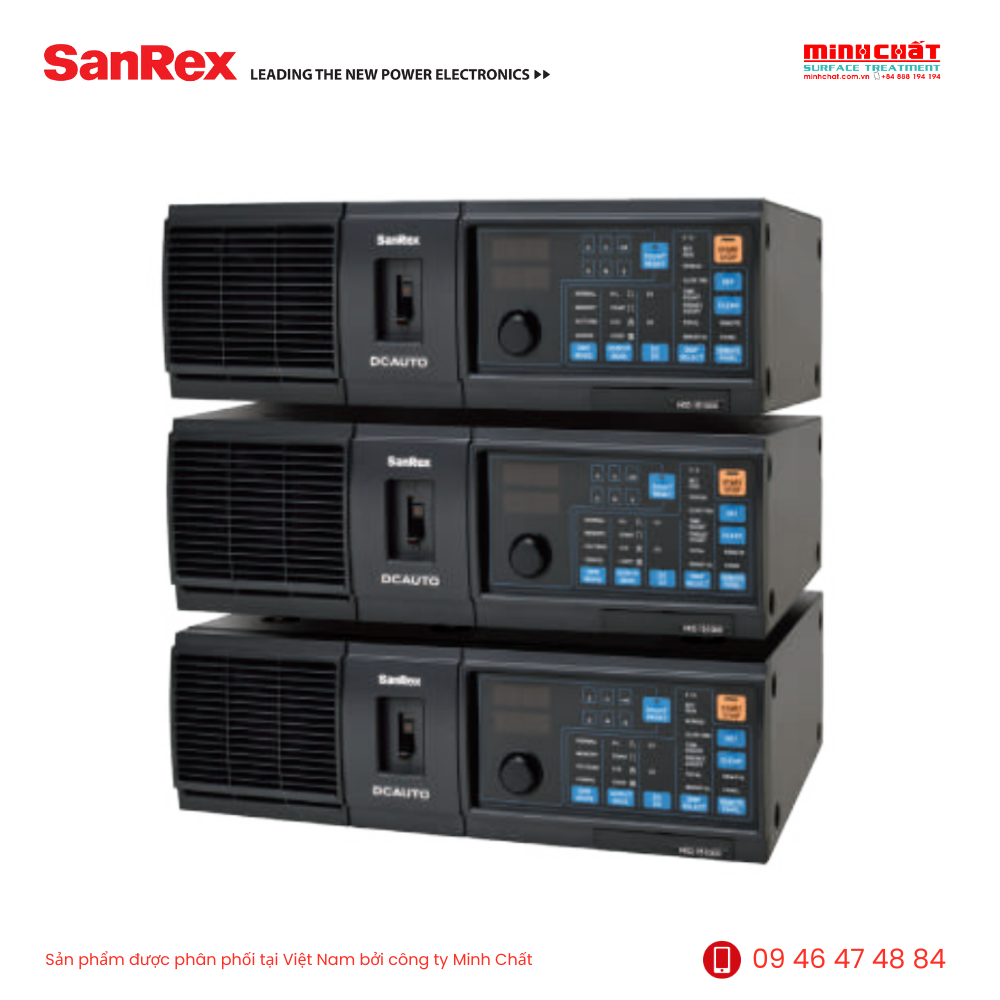

Máy Chỉnh Lưu SanRex HK-G Series

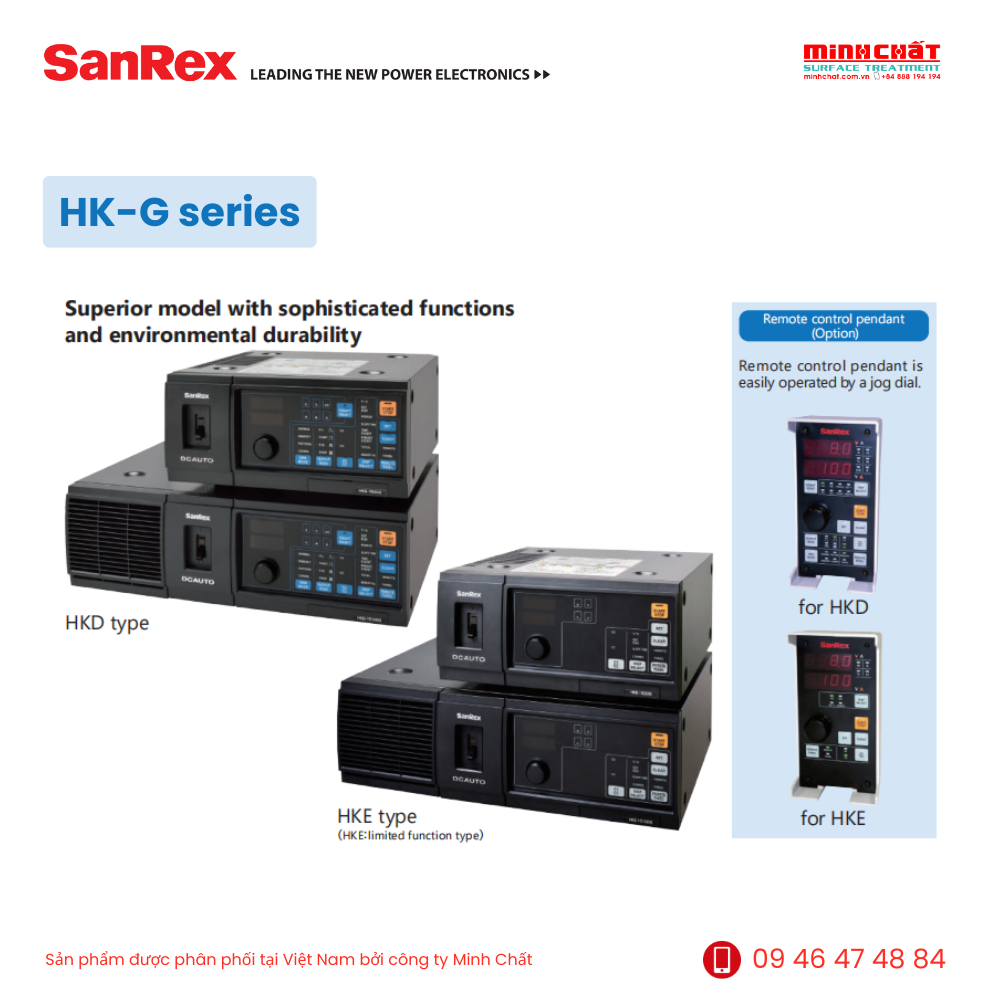

HK-G Series Dòng sản phẩm phù hợp mạ điện công suất nhỏ

Common specification

1. Input

Voltage:

- Single phase 100V/200V Changeover 100V-110V/200V-230V

- 3 phase: 200/400VChangeover 200V-220V/380V-440V

Frequency: 50Hz / 60 Hz

Votage range: ±10%

2. Output

Control method: PWM control switching method

Control: Constant Voltage (CV) or Constant Current (CC)

Accuracy (Warranty) range: 10% to 100% of rated value (current/voltage)

Accuracy:

- Variance of input power: Rated value ±0.5% or below

- Load variance: Rated value ±0.5% or below

Ripple: RMS 1% or below （of rated value at rated input/output）

3. Working condition

Location: Indoors

Ambient temperature: 0°C-40°C

Relative humidity: 30%-85%

Altitude: 1000m or below
